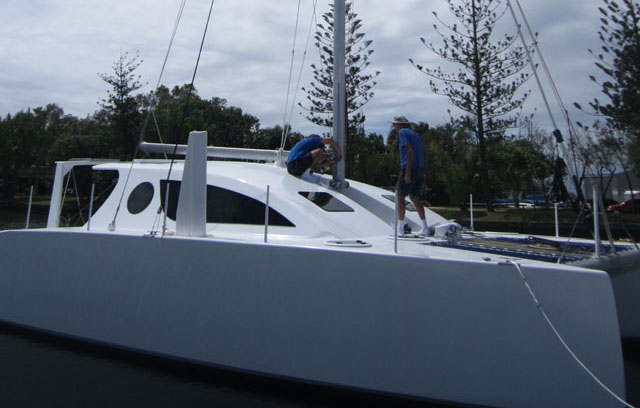

A new edition of The Coastal Passage has just been posted. Click on the image at right to download the PDF. Covid Cruising! From Tasmania to Greece with a boat built by the editor. For more information on this boat, see www.buildacat.com and check out The BareBones project.
 Welcome to the UPDATED windows installation page. Below is the installation on my modern catamaran but below that is the original instruction that has details you should also examine before taking on this job.

 Home page

 More Technical Articles
 Click here for your FREE download of the latest edition of The Coastal Passage

This is my Catamaran when getting a rig installed. The windows are 8mm or 5/16ths, Acrylic/ Perspex, supplied by Coastal Plastics of Tweed Heads NSW.

That thickness has been quite adequate and we have been hit with seas against the windows hard enough to set the boat over a meter in an instant.

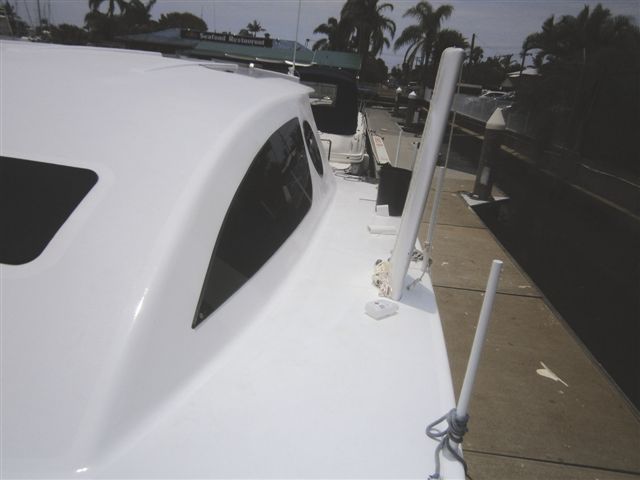

So there is the almost finished product. See the end of this section for more.

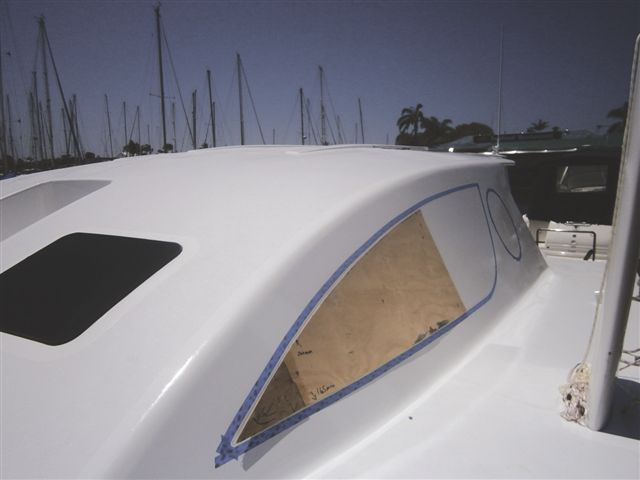

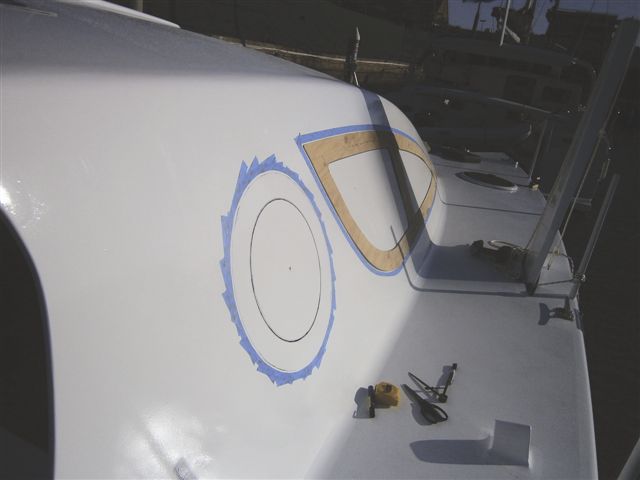

I got some cheap, light plywood to make templates of the windows. The big side windows are two sections with a gap in the middle to allow for exapnsion from the heat. I should have made that three sections. I screwed the panels into place to draw a line, then removed the panels and applied masking tape to cover the lines, then replaced the panel and drew the lines again but keeping about 6-8mm off the edge. After that I removed the panel and used a sharp blade to cut along the lines. A medical Scalple or fresh box knife blade.

The panel shown in this photo is not the correct one and I do not remember why it was used for this photo but the perspective is useful nonetheless. The next photo will explain.

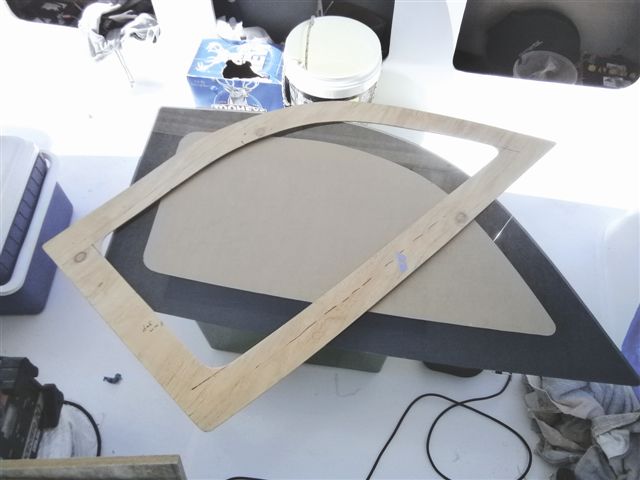

 The templates you see here have the window aperature cut out of them as well so the masking line can be acheived and the cut line for the aperature in your cabin sides. The templates were sent to Coastal Plastics to use for patterns. They transfered the shapes to their computer to program their CNC router for the cutting.

Be sure to make the plastic supplier aware there are left and right facing peices... as the outside edge should be slightly rounded.

The round windows I didn't bother with patterns. I just gave Coastal Plastics the Diameter I wanted and also drew my own lines as well.

I really like the roundies.

 The Plastic comes with paper covering both sides. The inside of the window, I used the pattern to make a line just slightly inside, of the inside line and then cut along that line. Then peel away the paper.

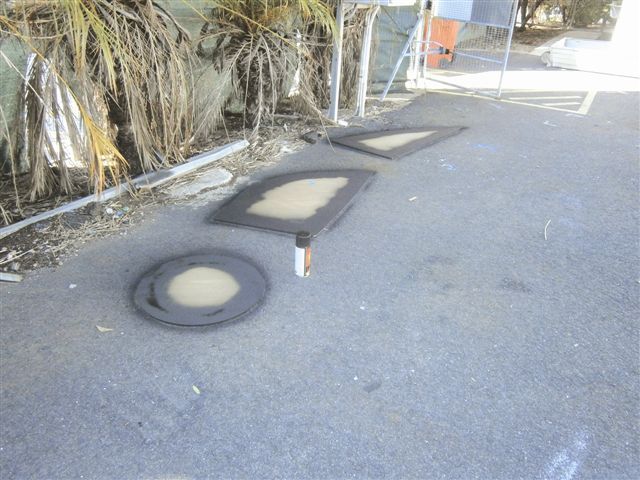

Paint the inside part that you have exposed in the step above. You don't need to cover the surface with a thick coat. I used Septone brand high temerature paint with good result.

When ready to install, remove the paper totally from the outside.

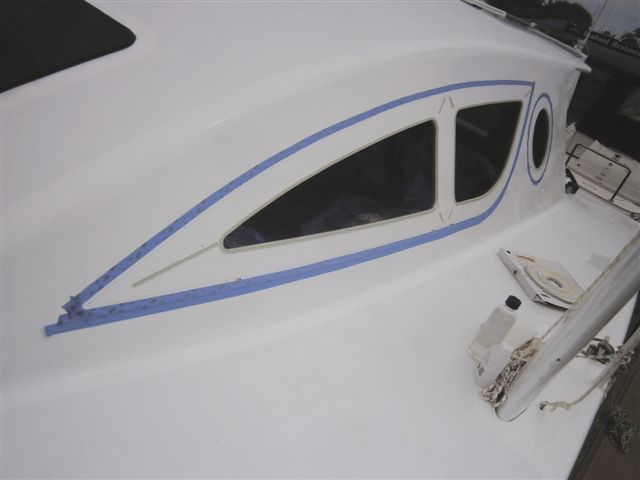

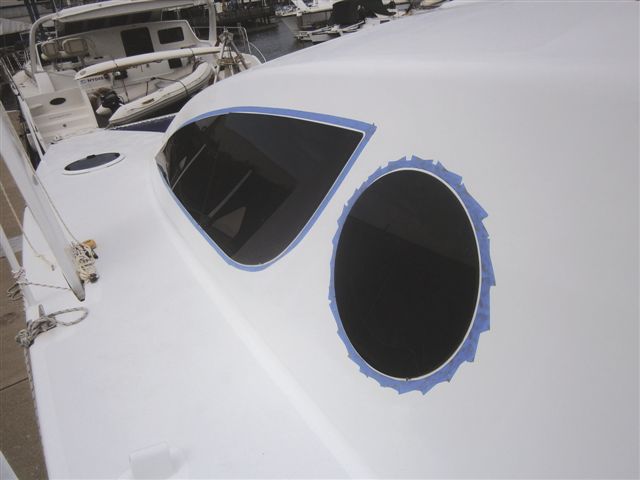

 The aperatures have been carefully cut out with a Jig saw and painted. The tape is ready. As I had structures to stiffen the sides and there was no balsa invovled, I did not bother to reinforce the aperatures by decoreing and filling with glass. I have an article about that on buildacat.com

i left a generous 3 1/2 inchs around the edges for the glue.

The tape I used here was 3M but not the grey stuff, the VHB 4991. It meant more work as the white stuff couldn't cope with the curve on the tips.

   Placing windows this size onto the tape and glued sections by hand is impossible to do well. They are very hard to see but I placed 2 screws on the underside of each window section. They are snug against the edge and the small holes they created are covered with sealant when you remove them and fill the edge with sealant.

 I had to work fast on these big windows or I would have had more Photos! Direct sun doesn't help either.

Here I have placed the rear section and am partway done gluing the forward section. When both were placed I shot sealant around the edges of both and imediately used my gloved and detergent lubed finger to form the edge. then strip off the tape.

I left about an inch between the two sections in the middle.


High stress work but the project goes fast. in a few hours you can have a de-stressing substance of your choice and admire the work.

 I was pleased with the result.

There is more info below on materials used but I will note here that I used Dow Corning 791 black, silicone.

Fixtech also has a sealant they claim is acceptable for plastic windows, #200

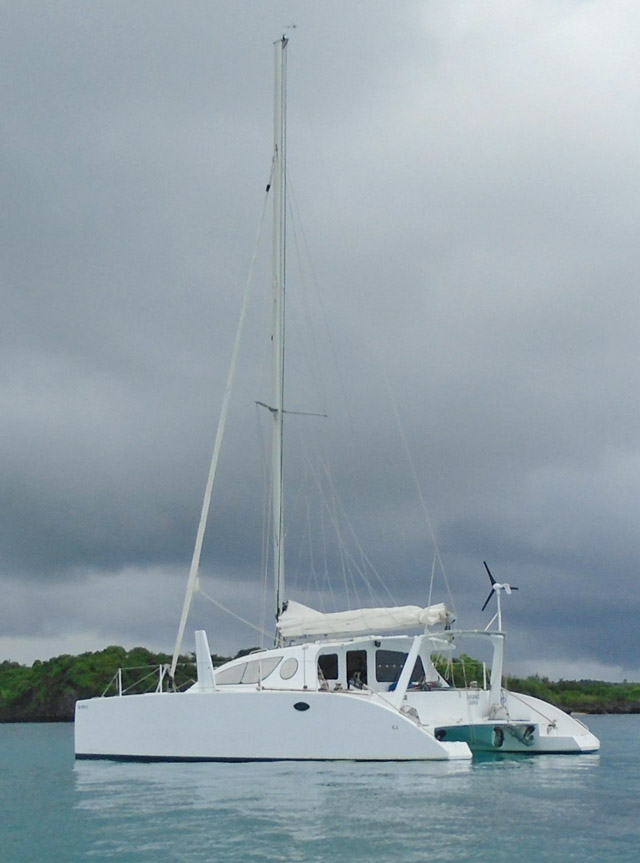

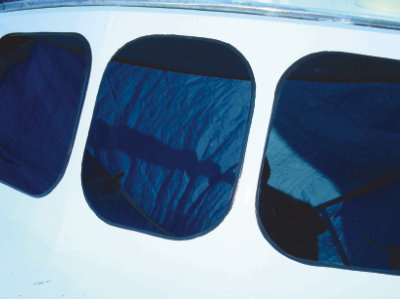

 This is more than just an excuse to show off my boat... though I do think it is good looking... look at the windows on the side. They are covered with a reflective tint. A mirror finish that reflects almost all heat from the sun. This brings down cabin Temperture which is good in the tropics where I spend a lot of time, and reduces expansion of the Acrylic to almost zero, which further insures the sealant's survival.


If I get enough interest I will get a page up with details of where, what and how.

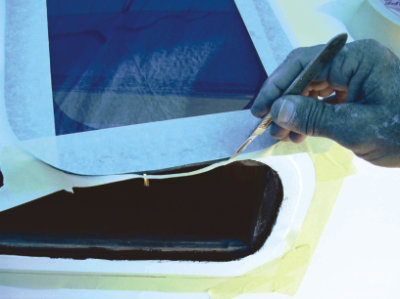

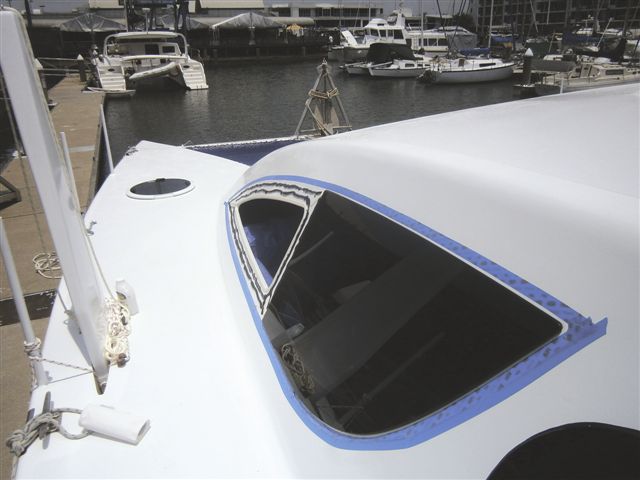

Masking off the window and aperture. I also used the scalpel for trimming the tape around the aperture but I have extensive experience with the tool. If you cut through the paint system accidentaly, you may create future problems. Another way to do it is to trace the window outline around the aperature and manually apply the tape about 5mm or 1/4" outside of the line. This can be tricky business on the curves and a narrower width of tape would help. Take time to do this step as neatly as you can because it is the one that makes the difference in appearance when finished.

Apply tape and strip off cover. The masking tape is applied to the boat in this photo but it is hard to see.

Apply sealent under where the edge will be and get ready for the stressful part!

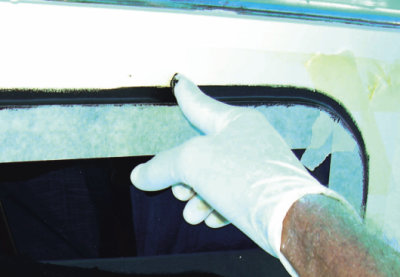

Apply a bead of sealent all around, work it under and smooth off.

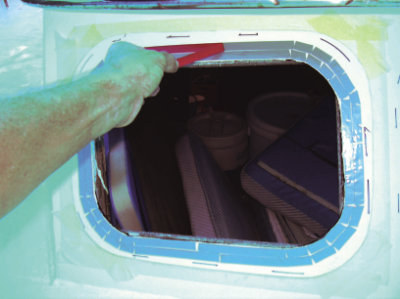

Carefully remove mask imediately, pulling away from the silicone sealant.


 In retrospect and additional notes;

This was done a year and a half ago and the windows have been perfect so far. (update; have since sold boat so no more recent record available) Not one drop of water has leaked but I would do a couple things differently nonetheless. I think I would use only 1, 1/2" (12mm) width of 3M tape this time instead of the double width that I did. I was concerned about the strength of the bond but I think the bond of the sealant is probably as good so I would increase the area of sealant. Because of the fairing I did around the aperatures, I wound up with a good thick bed of the sealant outside of the faired area and under the edges. The thickness of the bed is important. With the proper silicone I think a bed thickness of 2.5 to 3mm (1/8" + or -) for windows in the 300mm (1 foot) square size is more than adequate. The larger the window, the more the expansion, the thicker the bed and or width of area of silicone required for success over time. Consult your supplier for recomended thickness of plastic. I used 3/16" (4.4mm) for the project shown. If using perspex/acrylic, I would have increased that to 8mm.

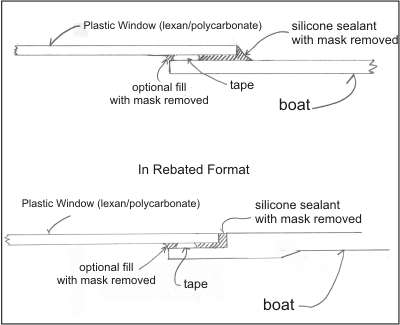

For those wanting to do the ultimate job.... keep the two sided tape a little away from the aperature and prepare a mask for the inside of the window as well and apply sealant there to. (see above, "optional fill") Mechanically, I think this may be overkill but in some situations may be better looking and would keep contaminants off the inside edge of the tape.

If you think you can handle this project, expect to save thousands of $$$$ over the cost of a pro to do it, if you can find one that will do it properly. This is the favoured method of some of the premier production boat builders in Australia and world wide. But don't tell anyone........

Notes as of November 09; Was just on the phone with Allan Crabtree in Cairns. He is working on his cat there and alerted me to a problem you might want to watch for. He gave the local dealer the stock number for the 3M tape in the article and he was given the wrong item. Instead of 3M VHB 4991 which is 2.3mm thick, he was given the similar but thinner variety. The 1.1mm variety is more common but the right stuff is 2.3mm thick. This difference could have a profound affect on the job. I don't know what it is about Queensland but watch these people. The 1.1 thickness is more popular with the auto trade to hold on trim so everyone has it and they would rather sell what they have rather than order what you need. Any shortcoming that occurs as a result is a risk THEY are willing to take!

A note to add, if stuck with the 1.1 mm tape, just use 2 layers.

ALSO.. though I prefer the tape because I like the idea of having two systems at work, it is quite common anymore to just use the silicone. You can use any devise to create the gap between your boat and the plastic to provide the required thickness in silicone bedding. Perhaps some fairing compound in strategic positions, or just spots of tape or anything at all. Self adhesive 'feet' for counter items can be found in any hardware store that would work. To do it this way you will need to mask the inside instead of it just being optional, and you may need to invent some bracing from the outside to hold the plastic in place while the silicone is setting. Especialy if there is a curve in it.

 By Bob Norson

When we were rebuilding “WhiteBird” some years ago, I was told that new boats were being made with windows/ports held in with two sided tape and silicone. I was replacing the old glass with polycarbonate but there was no way I was going to use wimpy shit like two sided tape to hold her together. In fact, there wasn't even enough screws left from the aluminium bezels to satisfy so I went to work with drill and tap and bought boxes of 5 mil screws…. about 500 all up!

When finished it was a work of art and admired by all, zillions of shiny screw heads holding the dark tinted plastic against the neatly trimmed Black Sika Flex on sparkling white painted sole and combing. The only thing worse would have been a bunch of varnished teak!!

I got away with it for a long time because I am always careful on boat work and fussy of finish but something I've found about working on boats is this… PERFECTION IS ONLY 90% EFFECTIVE!

Besides Sika Flex polyuerthane 291 not being up to the challenge (not the best anyway) of sealing plastic with the expansion tendency of “Lexan” (brand name) or polycarbonate all those screws were an invitation to trouble. Some were bound to leak over time and they did. On a plastic boat that means you have a tiny leak. On a steel boat a tiny leak means you have a big problem eventually. As the water penetrates the sealant around the screw and begins to corrode the steel behind the plastic, the expanding rust scale wrecks the sealant against the plastic itself and … well you get the vicious circle idea.

I had four things to do; first was to get the plastic. The supplier I used has ceased selling plastic so you are on your own to find a good supplier. Second was to repair the paint system, which on a steel boat deserves a couple pages of it's own. (See TCP # 27 for the article) Third was to find the right sealant which wasn't as easy as you might think but that is covered further along in this article. Lastly to mount the windows without screws and still make it look sexy….. the dreaded two sided tape

The window needs a relatively even surface. Besides the mechanical issues you don't want "waves" in your windows. If there is more than gentle curves involved use Wattyl brand fairing compound (recommended) between the primer and top coats somewhere to even things out. It's a two part epoxy putty compound. Unless you let it go too long the stuff sands fast and leaves a great surface. The fairing doesn’t need to extend beyond the area where the tape will be. If the sealant is a few mill thicker in one spot than another, no big deal. The sealant hides the difference well. All the paints and the fairing compound mentioned are products I have experience with and believe are the best for the job. For low cost and expert advise I recomend Whitsunday Ocean Services in Airlie Beach, email, phone (07) 4948 1366. I have observed great disparities in price on these materials.

So.. we all have an even surface to work from now, with a firm substrate of paint or other durable, UV resistant surface.


Cut your plastic to size leaving a 40mm (1 ½”) overlap (some say less but I work on the “safe” side) for your tape and sealant. I used a metal cutting blade on a jig saw running at moderate speed with good result. A less than perfect cut can be straightened out with a belt sander or file or whatever but don't polish the edge as you want silicone to stick to it later. Leave any plastic film in place on the plastic and note that Lexan has an “in and out” side. After cutting out I like to paint the area that will be the overlap facing in. Either use the plastic film that came with it or mask off with tape. I used a medical scalpel for shaping the film for masking. Xacto brand knives should work as well. You can get primers for plastic then coat with poly-U 400 but I found automotive exhaust paint to be very tough and grippy on the shiny plastic. (This was an insider trick I got from a lexan disributor!) The actual paint I used was "Septone" brand spray paint in a can. I recomend you test whatever paint you intend to use on a smal surface, let dry and scrape and abraid to insure good adhesion to the plastic. Painting on the underside edges reduces UV that could get to the tape to degrade it and hides all the stuff so it doesn't look ugly. (Lexan brand polycarb is claimed to be UV proof anyway.) Black was the colour appropriate for my application.

Next…. The very important task of masking off the sealant can be done now or later. I chose early because I wanted to apply the window with some sealant goohed on the boat already. Some say that extra sealant isn't needed, they squirt it in after the window is fastened with the tape but I was worried about getting enough under the edge, so I did it this way. I put masking tape on the boat then held up the window and used a divider to mark off a line about 5mm over the size of the window. Once marked I carefully (so as not to penetrate the paint surface) cut a line with my scalpel and lifted off the excess tape. Now strip off all the plastic film or masking tape you applied for the painting of the window and apply a mask to the edge of the outside of the new window to protect it from the sealant. I just laid it down quick and sloppy, then ran my blade around the edge and viola.. done. (see first picture)


Next… 3M brand tape VHB 4991 is known to be very good. It comes in a roll, ½ inch wide by 100 feet (33metres) long and 2.3 mm thick! Make sure you get the right stuff. Call 3M for more information, 136-136. This tape is used in the automotive industry to hold those plastic panels in place on the side of many newer cars (this info may help you find a supply). I used two strips of ½ inch to make the recommended 1 inch total (note that I have revised the recomendation of the 1 inch width of tape back to just 1/2 inch). Apply the tape to the boat toward the inside of the 40mm overlap area.

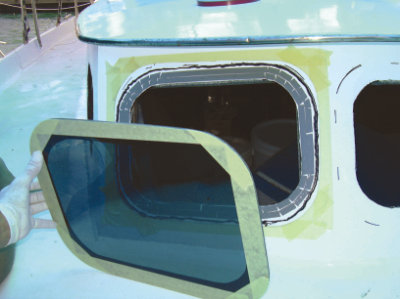

Next……Now strip off the cover on the two-sided tape and optionally (as I chose), squirt on a line of silicone under where the edge of the window will be, but not too close to the exposed tape surface. When the window is applied you don't want the silicone to invade the tape. Raise up your prepared window and carefully…..oh so carefully... put the window in place. You only have one shot at this. If it's wrong you are screwed, blued, stuffed and tattooed. Don't think you can move and slide, you can't. It's either right or get out the hammer and chisel. Assuming its right, use your palm to push hard to really set the tape to plastic.

Now that you are considering that stress, lets talk silicone! The right stuff is hard to find. You need a silicone of the correct colour (black in my case) with a neutral cure. If using Perspex you may get away with only a 20% + or- joint movement capability. With lexan or polycarbonate you need more because it's rate of expansion is greater. I found the right stuff at “Lincoln Sentry” in Mackay. It is Dow Corning brand, silicone # 791 with a whopping movement rate of 50%!. The Dow material is intended for the construction industry. Those glass and steel office buildings use very large panels of glass. Because of the size of the glass, they can expand a lot and this silicone is intended to tolerate that. 3M also has a sealant intended for use with Lexan, consult your local dealer. Normal polyurethane sealant is not up to the job. Your Sikaflex 291 may hold for a while but sooner or later the expansion of the polycarbonate will overcome the adhesion and it will start leaking. A very thick bedding of the sealant will slow it down though.

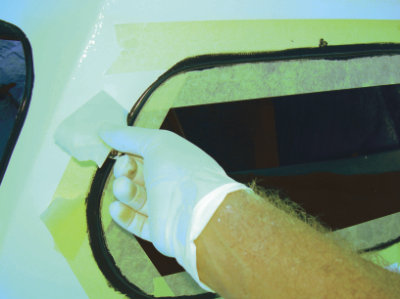

Next…. If you haven't already, mask off the outside now. (about 5-6mm from the edge of the plastic on a flat surface or to the edge of a rebated surface) Squirt a line of the silicone all the way around the outside edge. With a rubber glove covered finger, work the silicone into and under the edge of the plastic and finally smooth off the whole way round. Don't leave any holes or rough spots. Now carefully pull off the tape. Don't wait till it starts to set. Get all the masking off now. The silicone will skin out in a couple hours but you should give the project 72 hours before you abuse it. Rubber gloves are cheap at the supermarket so use plenty of em. Keep a bottle of methylated spirits and paper towels handy to wipe up the stray accidents.

DONE!I thanks to:
Brad of Blue line Boat Builders, Mackay. Brad got me started and even loaned some supplies. Thanks Brad.
Ian Cambell of “Vega 1” for tips on masking.
Brett of “Imagine” for general info and advice on when to remove masking.
Graeme of “Katani II” for the methylated spirit trick.
